結構特點
Features
1.SCHNEIDER PLC編程控制系統
2. ? 320鍍鉻輥筒配內置油加溫系統，溫度更加均勻穩定，恒溫性能優異。
3.氣脹放膜，膜卷裝卸方便，且放膜松緊度可根據需要隨意調節。
4.分切系統，兩種打孔裝置方便用戶針對不同規格紙張及薄膜選擇使用。
5.改進的牽引輥調節系統使牽引力調節更加方便、有效。
6.瓦楞曲紙輸出系統、振動收紙系統等配置收紙更加方便、整齊。
7.機器分體結構，方便保養維修。
1.SCHNEIDER PLC system makes the machine run stably and quietly.
2. ?320 size of chromed heating roller is mounted with built-in oil heating system which probalanced laminating temperature and owns excellent temperature persistence.
3.Pneumatic film unwinding system positions film roll more accurately , and makes the loading and unloading of film roll and film unwinding tension much more convenient .
4.Double sets of serrated perforating wheels provide different choices for different specifications of sheets and film.
5.Perfected traction adjusting system makes traction adjustment more convenient and efficient.
6.Corrugating delivery system and vibrating receiving system ensure paper collection more regular and convenient.
技術參數
|

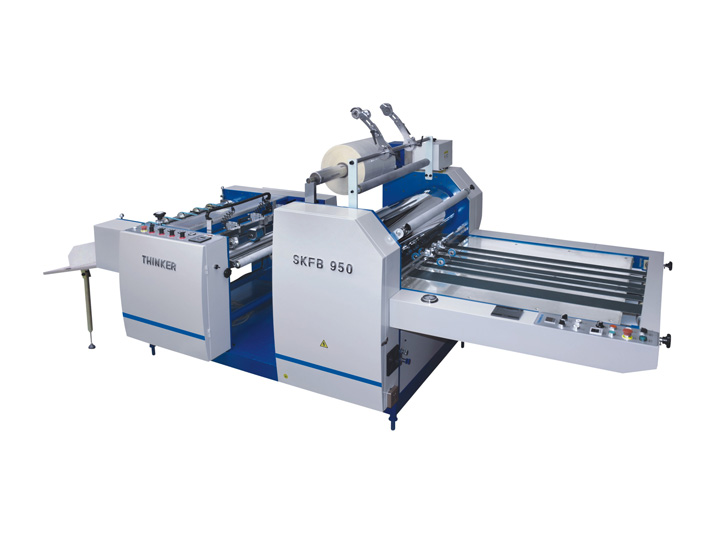

型號規格 Model Number |
SKBF-950 |
|
最大紙張寬度 Max paper Size |
920mm |
|
適用紙厚 Paper Thickness |
100-500g/㎡ |
|
覆膜速度 Laminating Speed |
0-30m/min |
|
總功率 Grosspower |
19kw |
|
機器重量 Weight |
1900kg |
|
外型尺寸 Overall Dimensions |
4600x1760x1500mm |
